Consumer Log Saws

Xcut

The Xcut features our patent-pending SmartFlowTM technology, which provides the lowest bias and highest speed available for an indexing saw. Featuring an automatic blade shield, no hydraulics and servo motion control, the Xcut offers safety, reliability and simplicity not found in other logsaws available today.


Prolog LT

The Prolog LT is a logsaw designed for mid production level rates. The straightforward and clean design provides a cost-effective solution for a customer’s converting needs up to 250 cuts per minute per lane. Customers who choose the Prolog LT benefit from smooth, reliable operation at high speeds, product changeovers without change parts and quality cuts throughout the blade life.


Prolog

The Prolog is the world’s fastest log saw, incorporating continuous motion technology to provide the highest product quality and reliability at unequalled converting rates. The Prolog offers a continuous motion orbit head, full diameter range log clamps and shuttle trim eliminator.



Spectrum 4 Color Printer

The Spectrum is a four-color flexographic central impression printer for tissue and towel. The latest gearless version was designed to be retrofitted into existing geared Spectrum presses.



CI550

More info coming soon!

Contacts

  • Gino Santi

    Sales Director - Tissue Converting - Americas

    p.

    e. gino.santi@pcmc.com

  • Gianluca Matelli

    Sales Director - Tissue Converting - EMEA and APAC

    p.

    e. gianluca.matelli@pcmc.com

Xcut

• Patent-pending SmartFlow log conveyors with each lane independently

  servo driven

• Full diameter range clamps

• Shuttle trim eliminator

• Automatic blade shield

Prolog LT

• Continuous motion orbit head
• Full diameter range clamps
• Shuttle trim eliminator

Prolog

• Continuous motion orbit head
• Full diameter range clamps
• Shuttle trim eliminator

Xcut

• Selective roll culling

• Trim removal conveyor

• Grinder dust extraction system

• Fire detection

• Fire suppression: carbon dioxide based

• Fire suppression: water based

• Servomotor actuated log clamp adjustment


Prolog LT

Production Package

  • Timing belt conveyor (replaces chain conveyor)
  • Optimal flight length to minimize air cuts

Automation Package

  •  Servo adjust log clamps
  • Auto orbit head and grinder adjust

Operational Package

  • Swing arm HMI
  • Auto orbit head and grinder adjust
  • Lexan shuttle trim panels
  • Photo Eye Air Wash System

Conveyor Interface Package

  • Back up stop photoeyes
  • Back up pause photoeyes

Selective roll culling
Fire protection system


Prolog

  • Number of lanes
  • Towel/tissue capability
  • Prolog HD configuration: Prolog HD is a variant with heavy duty features for larger diameter and/or higher density logs
  • EcoTrim
  • Fire protection system
  • Servo clamp adjustment
  • Selective roll culling
  • Grinder dust collection system
Xcut

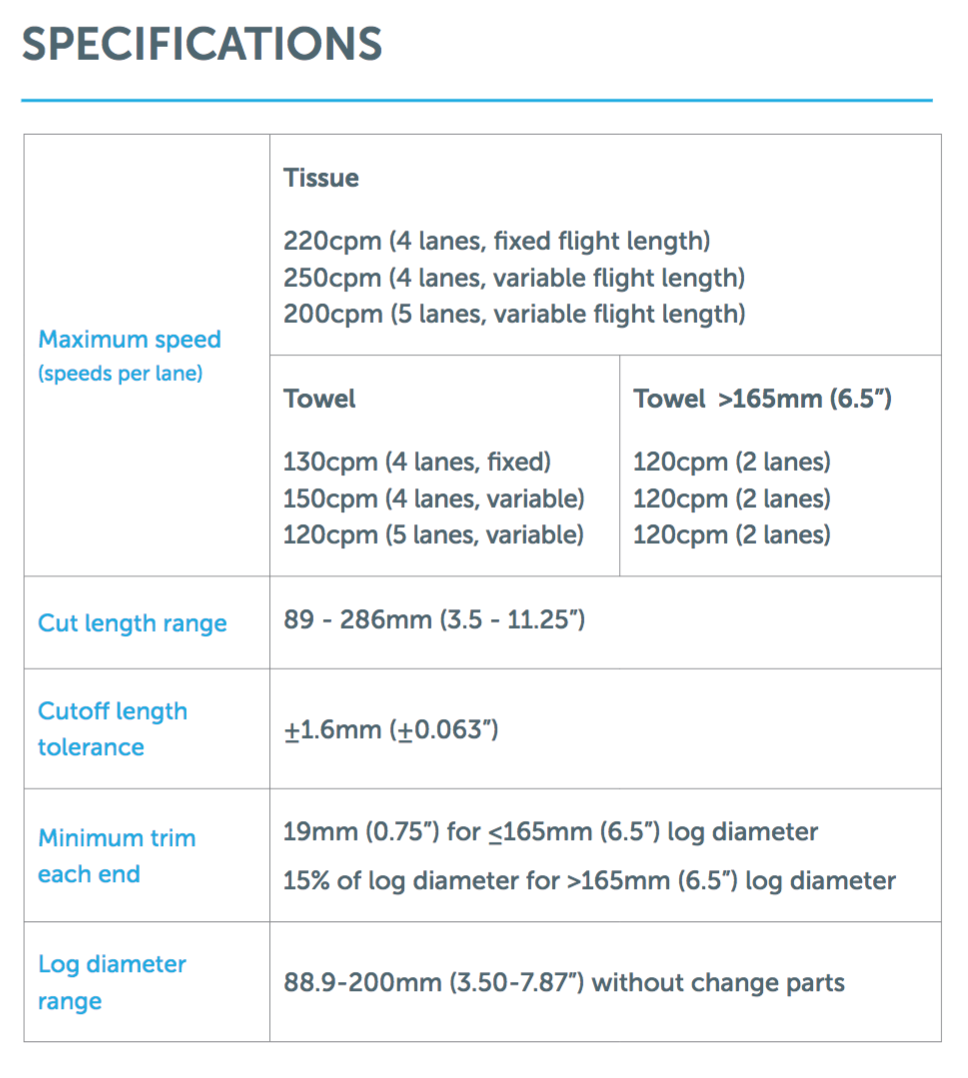

Screen Shot 2018-05-16 at 9.41.54 AM

Prolog LT



Screen Shot 2017-09-20 at 1.25.46 PM



Prolog

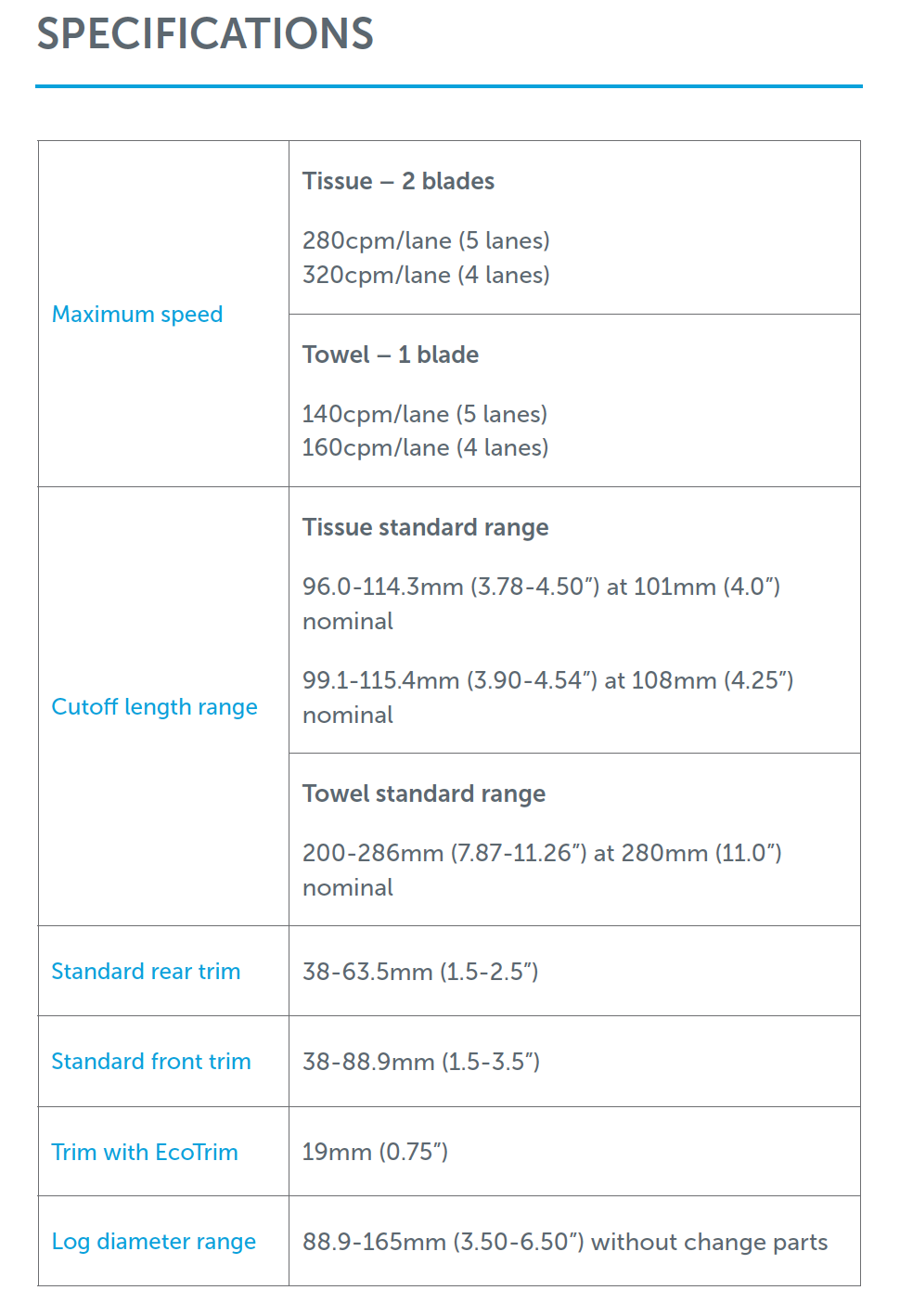

Screen Shot 2017-09-20 at 1.29.29 PM

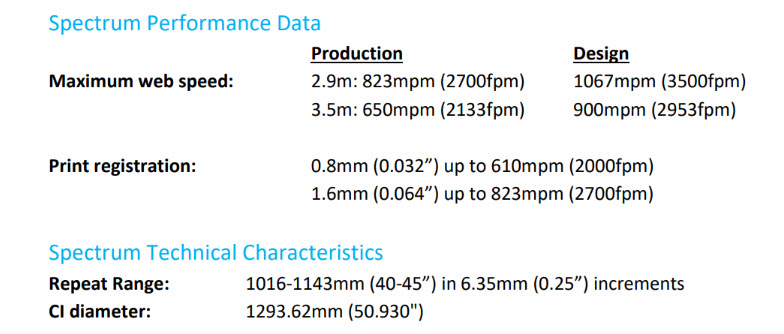

Spectrum 4 Color Printer
